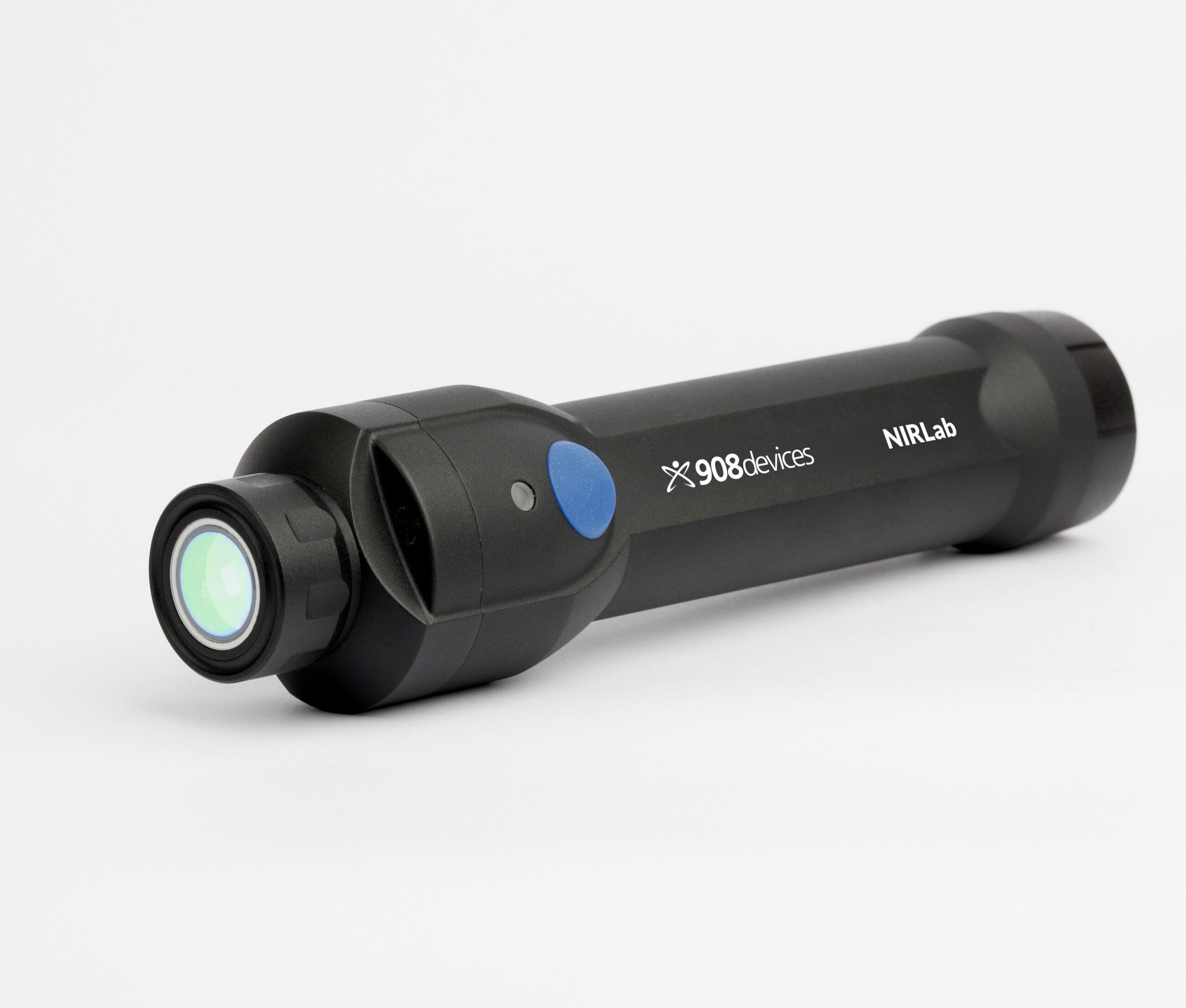

Handheld NIR spectrometer for on-site analysis
Ultra light, wireless and IP67 rated. The device comes as part of a complete system, with a ready-to-use or custom model, the mobile app and the web platform.
WORKS WITH YOUR SAMPLES
Solid, powder, or liquid
Most materials are measured by placing the device directly on the sample. Two accessories cover samples that need a fixed measuring position.

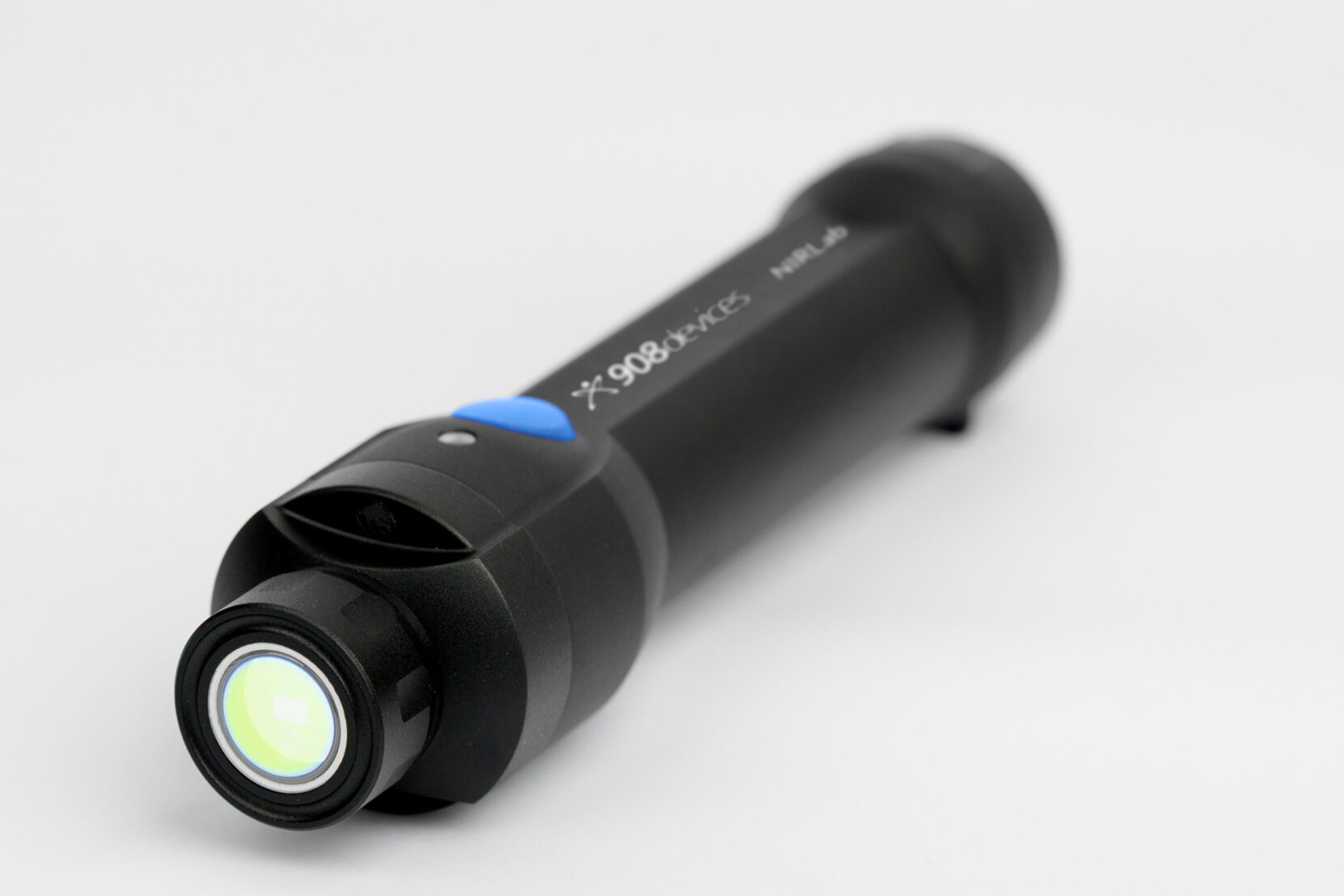

NO ACCESSORY
Solids and powders
Place the optical window on the sample and press the button. Used for most food, agricultural and polymer applications.

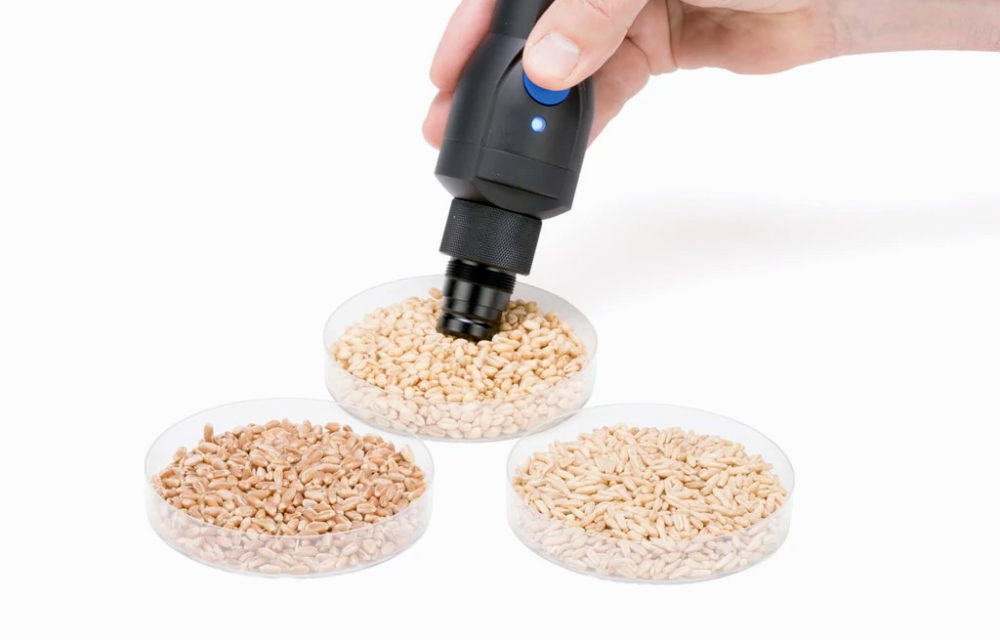

TABLET PROBE
Grains and tablets
Non-destructive analysis of individual samples, even through plastic bags. Includes a 16 mm collection optic, a reference cell and an 8 mm adapter.

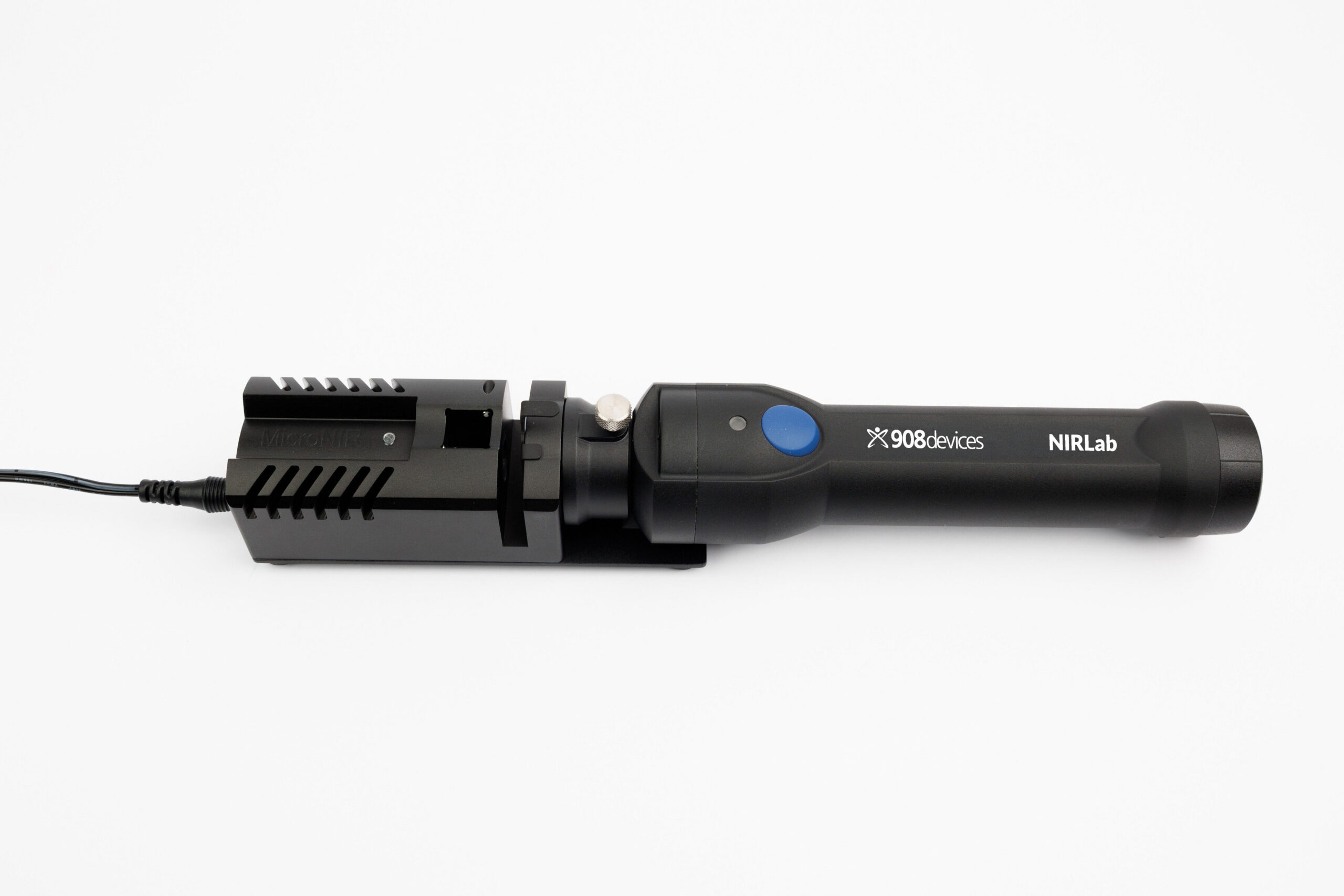

TRANSMISSION FIXTURE
Liquids
Liquid samples in standard cuvettes from 0.5 to 10 mm, plus thin films and filters up to 3 mm thick. Integrated tungsten lamp.
HOW A MEASUREMENT WORKS
Three steps to a result
Whether your model comes from our library or was built on your samples, scanning works the same way.
1
Connect
Pair the device with the NIRStudio app on your phone.
2
Scan
Choose your model, place the device on the sample and press the button.
✓
Result
Read the result in the app. It is stored and synced to the web platform.
A COMPLETE SYSTEM
Part of a connected solution
The spectrometer captures the spectrum, your model turns it into a result, and the app and web platform put that result to work. The hardware is supplied only as part of this system.
1
Hardware
A handheld, wireless NIR spectrometer that captures a clean, repeatable spectrum where the sample is.
2
Model
A ready-to-use or custom calibration model turns the spectrum into a reliable result.
3
Software
The app shows each result in the field, and the web portal turns your data into insight across sites and over time.
Data and compliance. Every result is stored in the web platform with a full audit trail, role-based access and enforced password rules.
APP AND WEB PORTAL
From one scan to the full picture
The app gives the result on the spot. The portal collects every result for review across sites.
IN THE FIELD

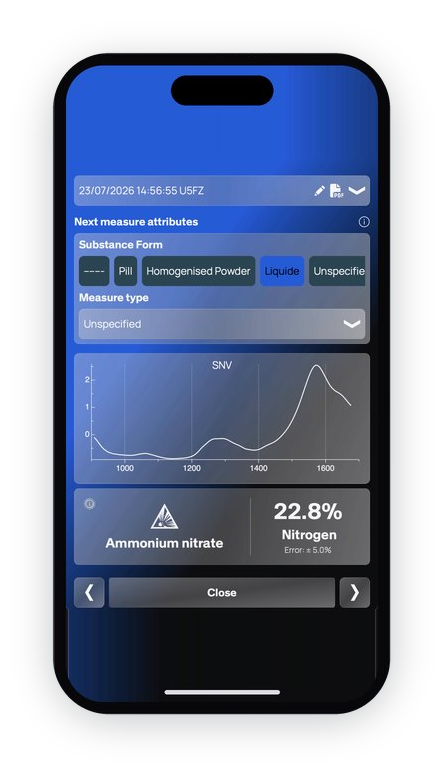

NIRStudio app
Scan with one press
Pick the model for your material, place the device and press the button.
Result and spectrum
Values with error margins and the spectrum on screen in seconds.
Works in the field
Scans are kept on the phone and sync when you are back online. iOS and Android.
IN THE OFFICE
Web portal
Every result in one place
Sample, user, device, model and location sync with each scan, offline scans included.
Filter, compare, map
By material, parameter, country or period, with a map of where you measured.
Team and devices
User roles from operator to admin, and every active device at a glance.
Traceable by design
A full audit trail of scans, model updates and access.
SPECIFICATIONS
The essentials at a glance
Full engineering details, box contents and warranty terms are in the spec sheet.
950–1650 nm
Wavelength range
Under 250 g
Weight, under 9 oz
0.25–0.5 s
Measurement time per scan
194 x 47 mm
Length x diameter
BLE and USB
Bluetooth 4.1 (BLE) and USB 2.0
IP67
Dust and water resistance
10 h
Battery, continuous use. 3.5 h to charge
iOS and Android
NIRStudio app, plus the web platform
Tell us what you need to measure
If we already have a model for your material, you can start this week. If we don’t, we will build one for you.
